Truetone 1 SPOT PRO CS12 Isolated Guitar Pedal Power Supply
$224.85
4 in stock
Guaranteed Safe Checkout
Gear Details

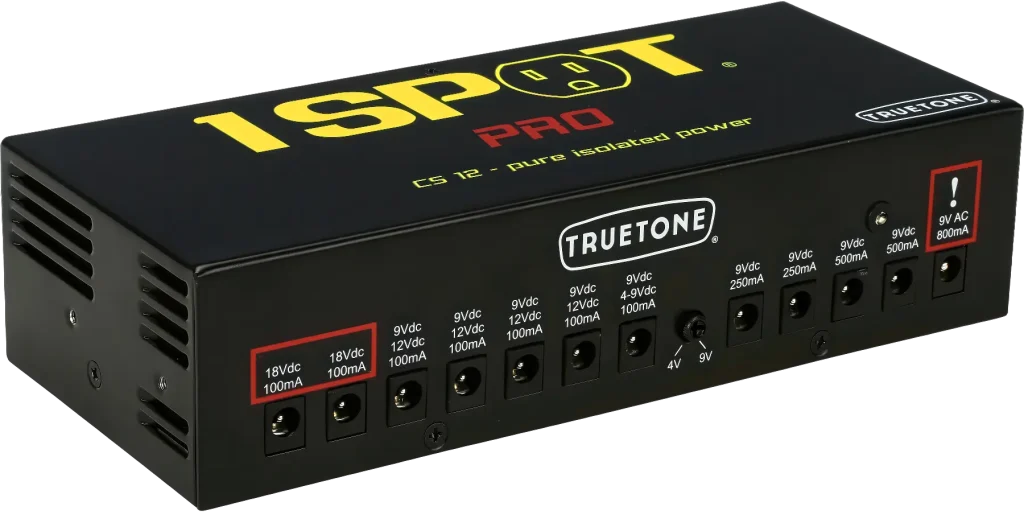

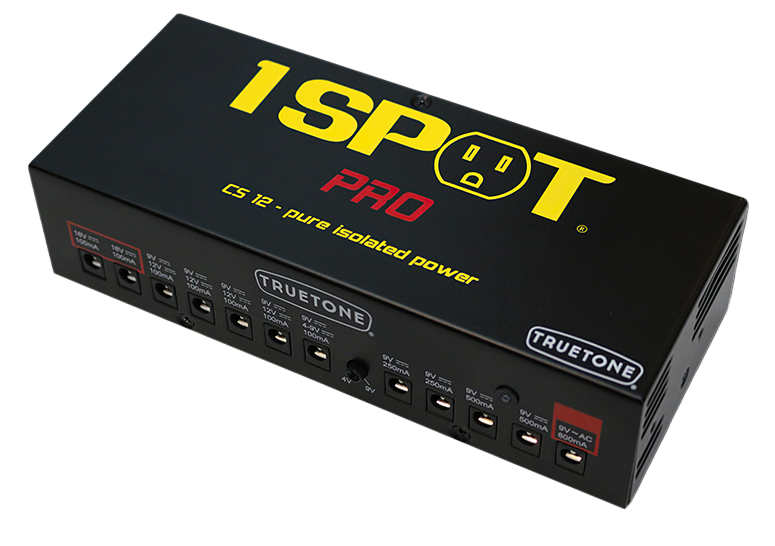

The CS12 delivers pure, isolated power to 12 outputs, with dedicated 18Vdc outputs, switchable 9/12Vdc outputs, a variable 4-9Vdc output and a separate 9Vac output for certain older Line 6 or Digitech pedals.
- 12 isolated, filtered outputs — more than enough for any pedalboard
- 9Vdc, 12Vdc, 18Vdc, variable 4-9Vdc and even 9Vac options

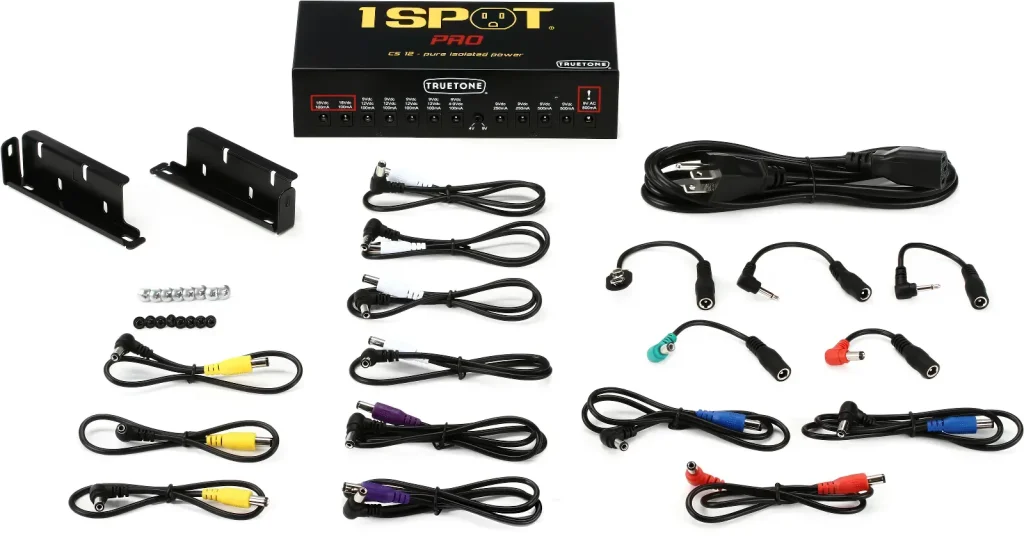

- Cables and color-coded converter plugs included
- Pedaltrain® mounting brackets included
- Worldwide input voltage: 100–240Vac, no step-up transformer needed
- Rugged all-steel housing built for the road
Specs

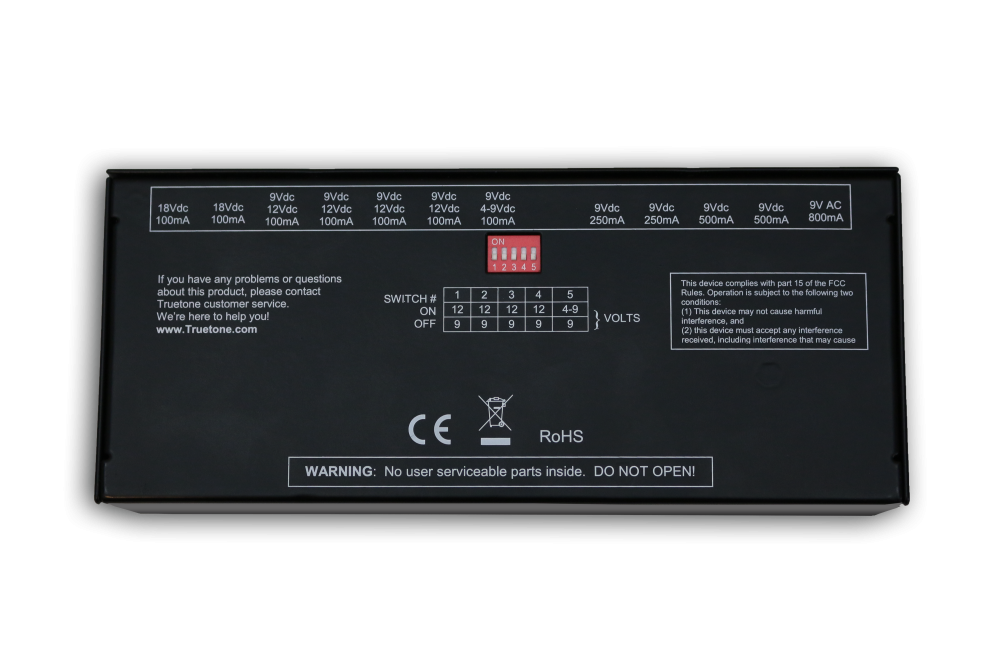

The CS12 delivers pure, isolated power to 12 outputs, with DIP switches that let you select voltage on key outputs without any additional cables.
Every output is independently isolated and triple filtered. This is the Swiss Army knife of power supplies… there are almost no pedals that it can’t power.
| Dimensions | 205 × 86 × 50mm (8.07 × 3.38 × 1.97″) |
| Weight | 980 grams (2.16 lbs.) |
| Input Voltage | 120/240 switchable |
| Total Outputs | 12 independently isolated |

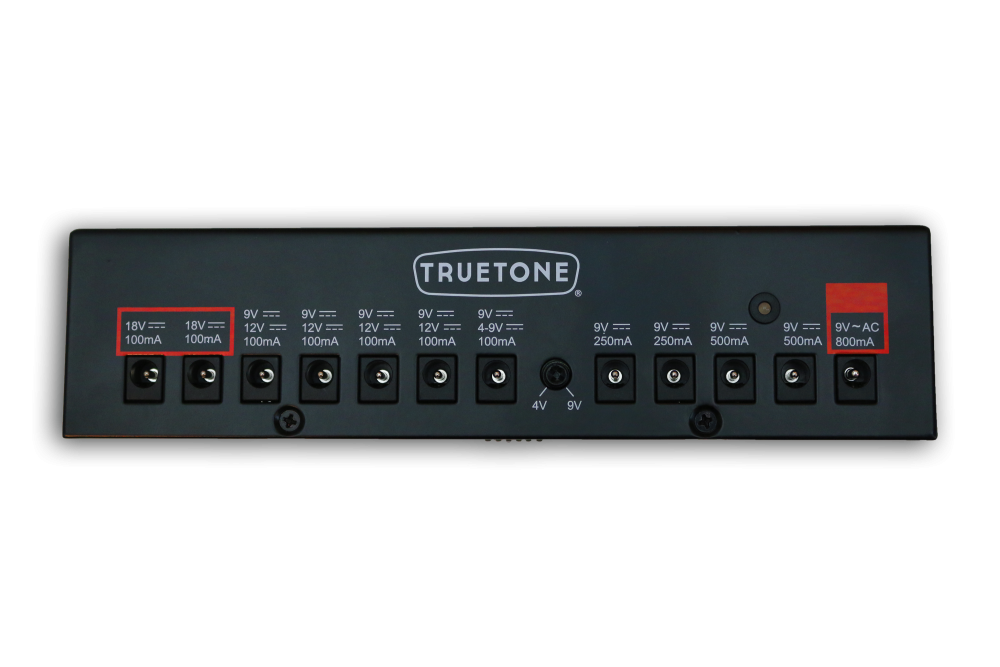

| Output Voltages |
Outputs 1–2
18Vdc · 100mA each
Outputs 3–6
9/12Vdc switchable · 100mA each
Output 7
9Vdc/4-9Vdc switchable · 100mA
Outputs 8–9
9Vdc · 250mA each
Outputs 10–11
9Vdc · 500mA each
Output 12
9Vac · 800mA
|
| Included Cables | Color-coded DC cables, converter plugs (CL6, CYR, C35, CBAT, C2.5) |
| Mounting | Pedaltrain® brackets included |
| Warranty | 5-Year Limited |
